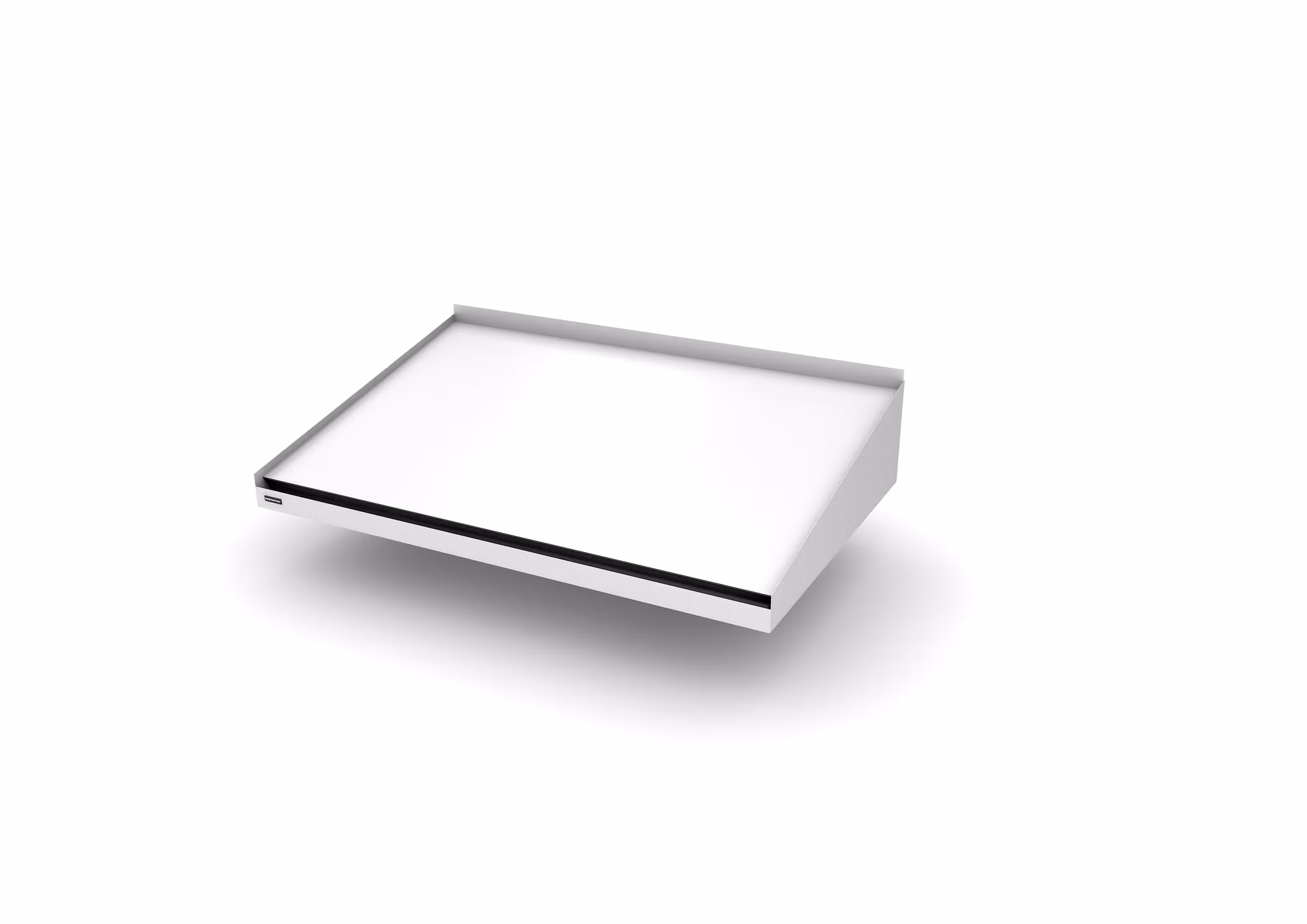

Simple Classic D = 955

1,131.71 EUR






Article: 48

Simple Classic is a stylish entrance roof with a completely smooth top. Suitable for those who want a discreet appearance and like the ceiling to blend well into the facade. Suits a modern property just as well as an older one.

This entrance roof has a depth of 955mm, also available with depth 1155mm.

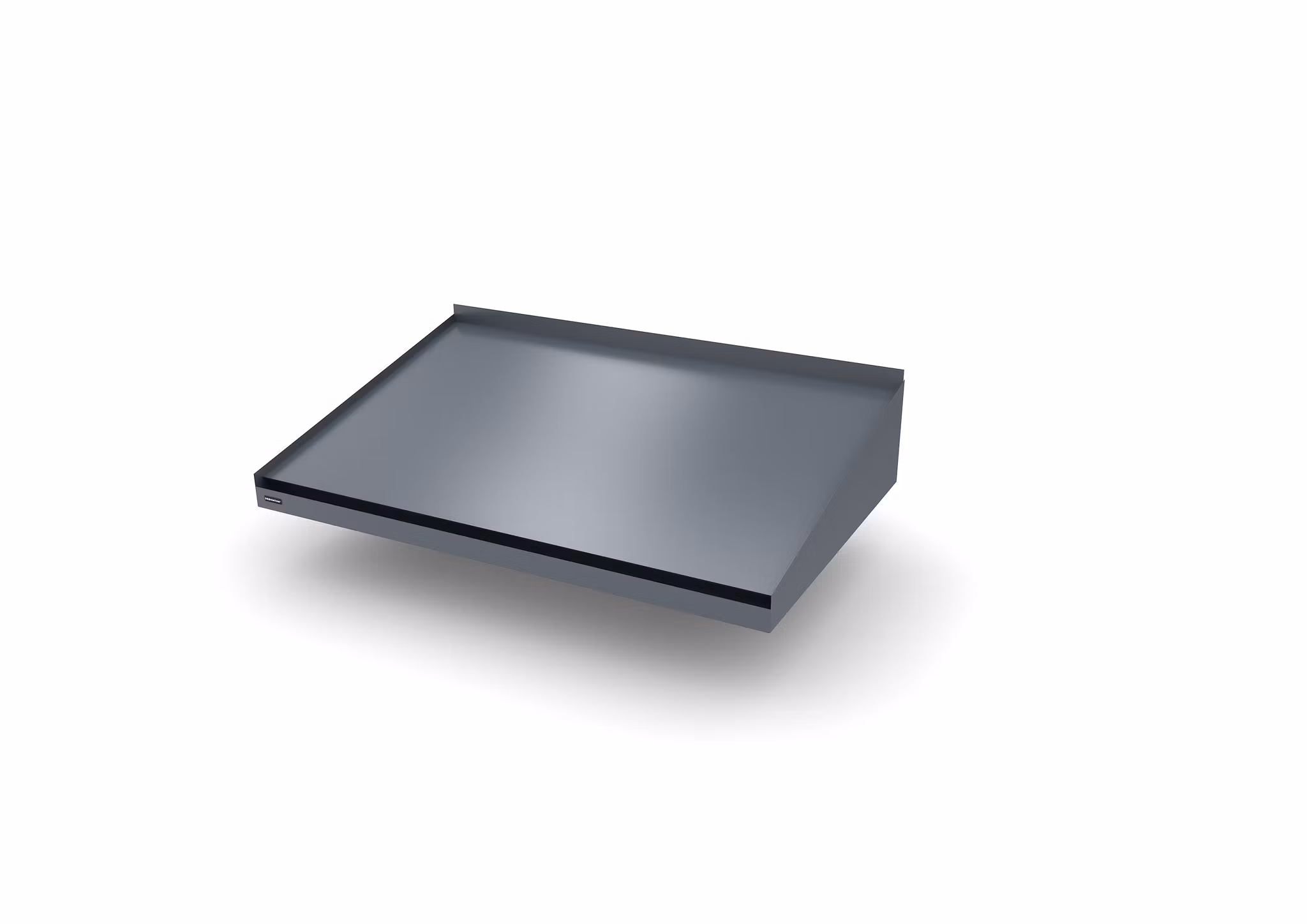

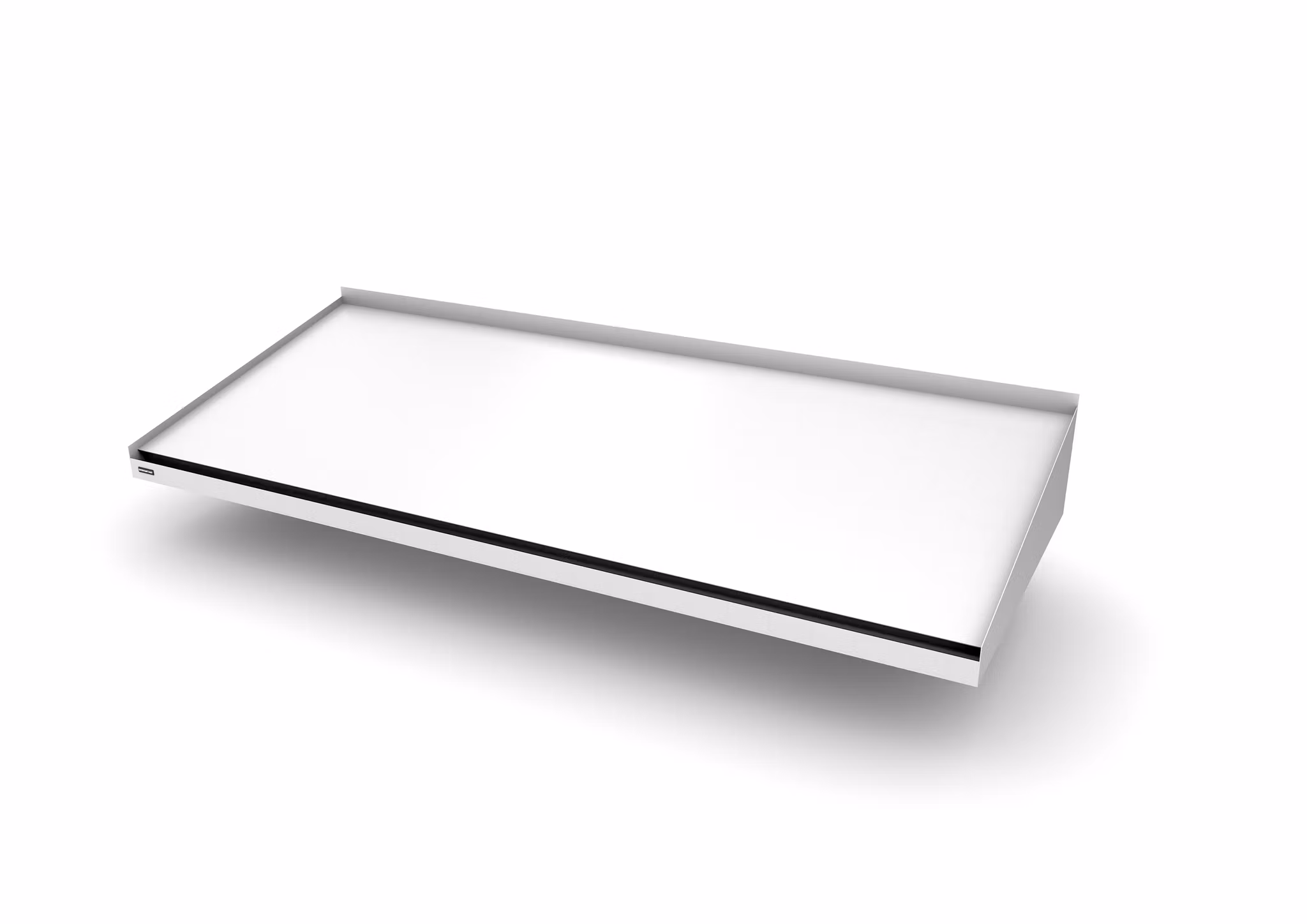

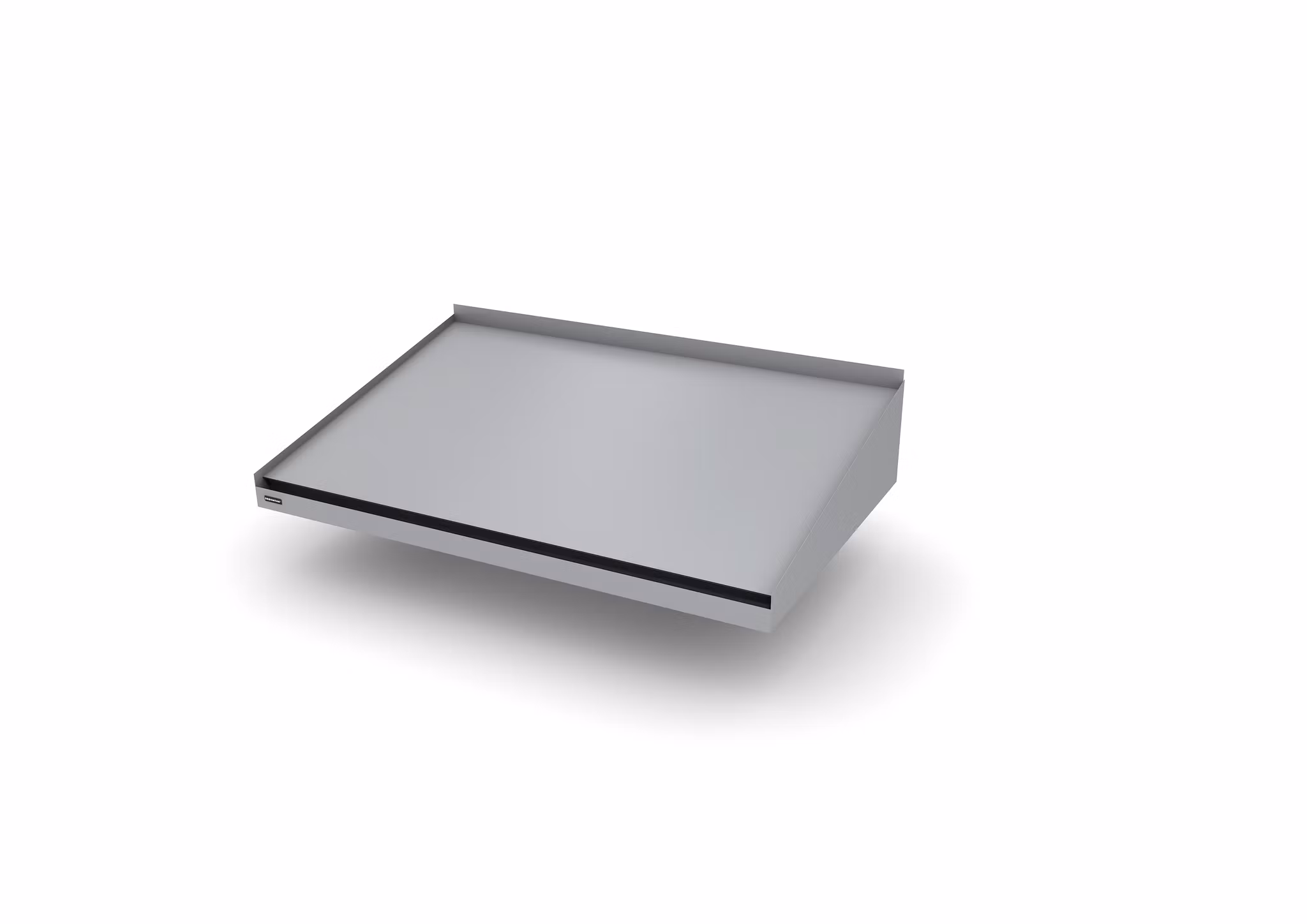

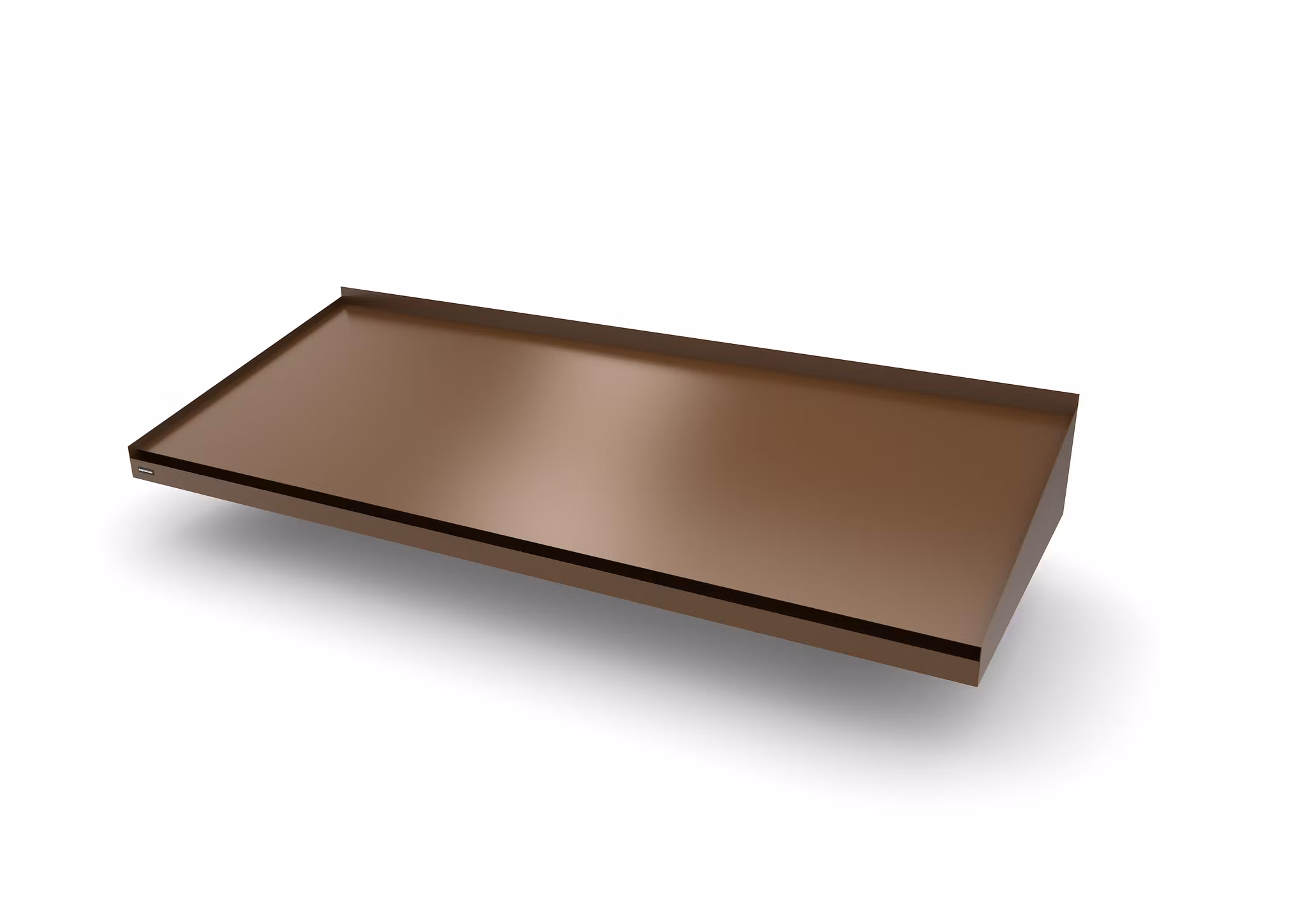

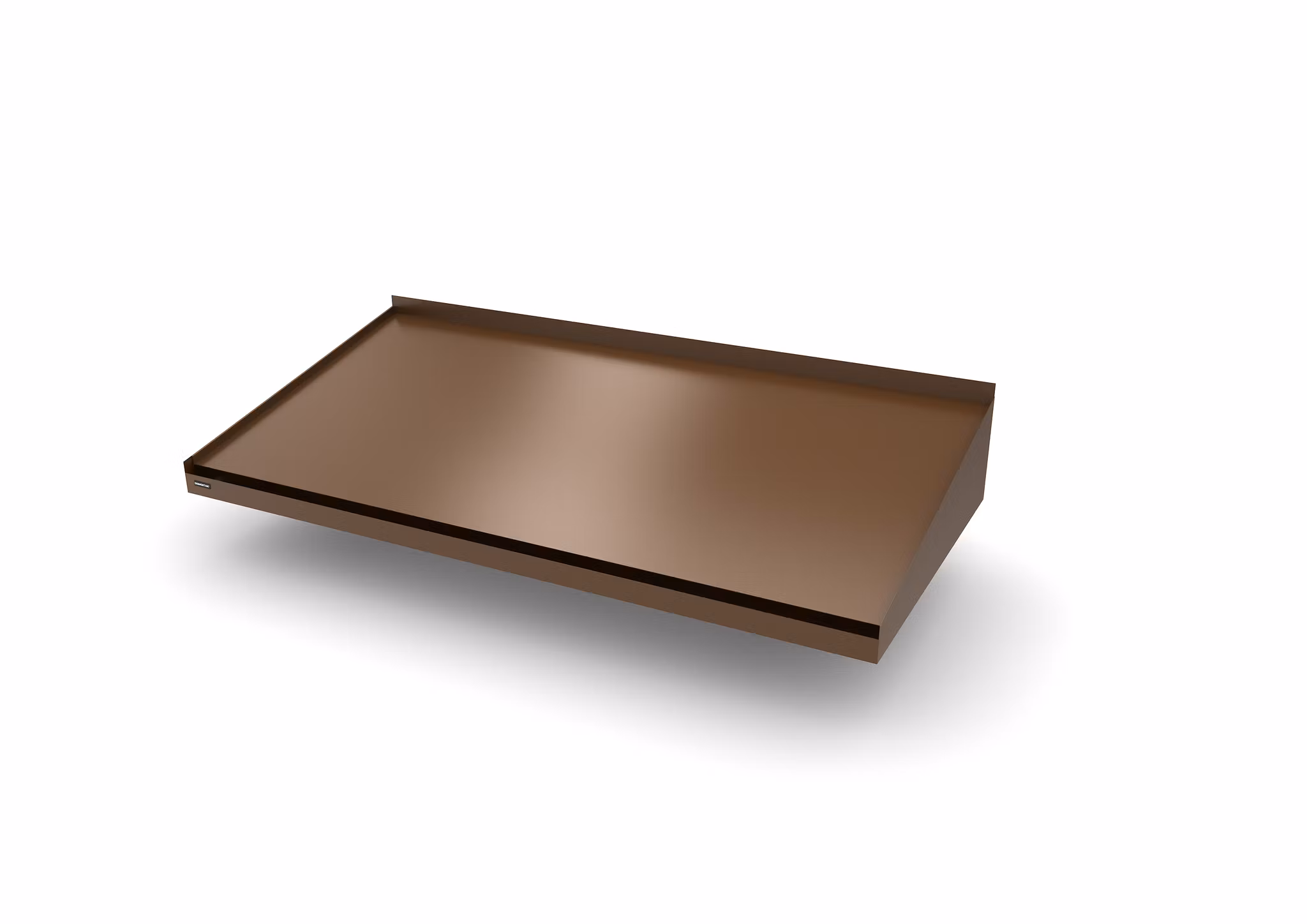

Available in nine different colours, all with ceilings in white lacquered aluminium sheeting and in widths: 1500 mm, 2000 mm and 2430mm.

Thanks to the materials used, the door canopy has a long service life with minimal need for maintenance.


BENEFITS:

  • Available with recessed LED spotlight
  • Easy installation with the included mounting bracket.
  • Built-in gutter for rainwater collecting.
  • One of the market's most maintenance-free sheet metal roofs.
  • Hand-crafted in Småland.
  • Meets building standards and is CE marked according to EN1090-3.
  • Cheaper than site-built roofing of sheet metal, as done traditionally.

TIP!

  • Use a silicone/construction joint seal between the entrance roof top plate and the house facade.

PLEASE NOTE!

  • Aluzinc is sensitive to galvanic corrosion upon contact with precious metals such as copper, lead and stainless steel. Rainwater containing copper should not run down the Aluzinc sheet!


Inspiration Film



This Film shows how easy this entrance roof is to mount thanks to our unique suspension systems.




Facts

Download

Brand Designtak Simple Classic
Width (mm) 1500 | 2000 | 2500
Depth (mm) 955
Weight 1500mm-26kg | 2000mm-31kg |2500mm-39kg
Incline 12º
Colour See colour palette
Warranty 5 years
Material Sheet metal/aluminum frame
Spotlights (optional)
Max load 350kg per m²

pdf Installation instructions
pdf Scale drawing

pdf Colour palette
pdf
White / Silver LEDs 3W
pdf Care instructions
